Garbage Chute
Metalkraft offers high quality and technologically advanced centralised garbage collection system for high-rise buildings with various additional features enlisted below.
Advantages Of Garbage Chutes:
Garbage Collection at a single point in a building.
Segregation of garbage is possible at the time of collection at source.
Low cost and effective method of garbage collection. Saves manpower.
Ensures Safety and security in garbage collection.

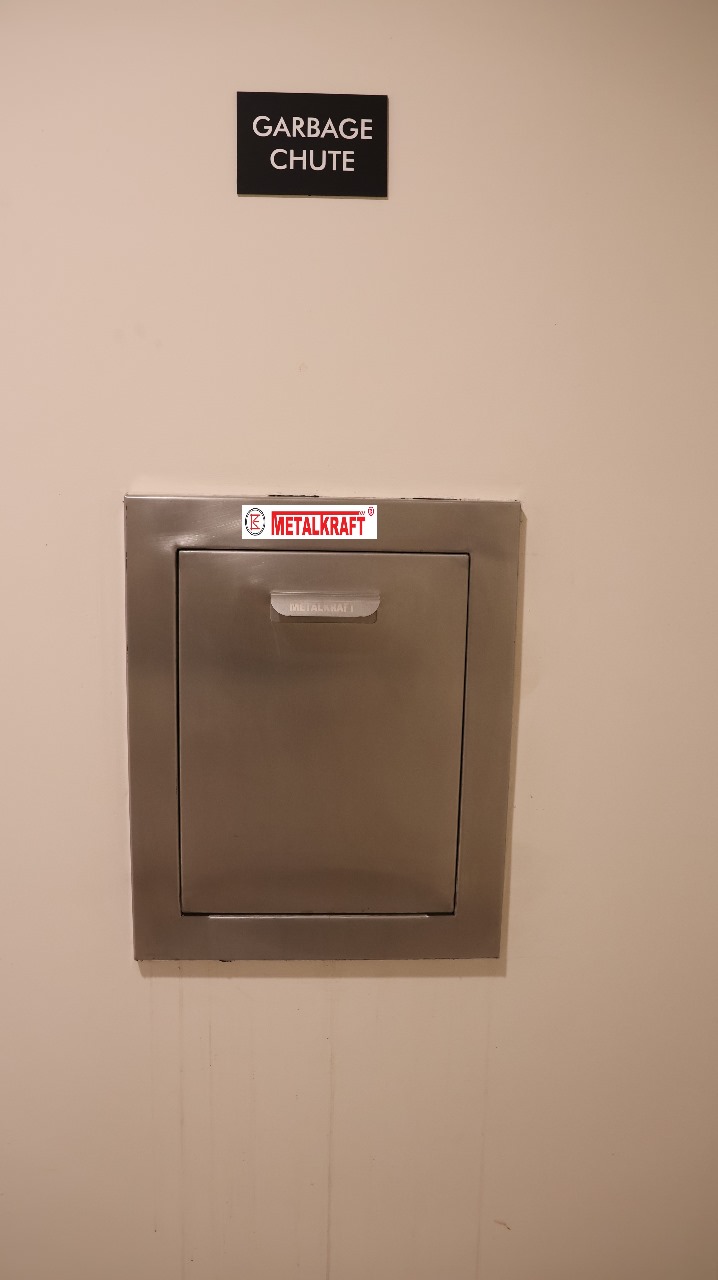

Standard Garbage Chutes:
Garbage is collected from all floors and collected at a single point at the bottom.
No segregation of garbage is done.
No interlocking features are provided.
Doors are manually opened and have a spring closing system.
Fire cut-off doors are provided at the discharge end.
Fire sprinklers are installed on each floor.
A brush cleaning system is provided.
A sanitation unit is available.
An exhaust unit is provided.
Interlocking Garbage Chutes:
The collection and disposal process is similar to a standard garbage chute system.
No segregation of waste is possible.
All fire, cleaning, and additional features are provided as in the standard garbage chute.
Electrical interlocks on each floor are provided, ensuring that only one door can be opened at a time.
A master control panel manages and controls the complete system.
Interlocks with cleaning operations can be implemented.
Automatic locking of doors in case of a fire breakout.
A trolley full alarm system is provided as an additional feature.
Segregated Garbage Chute:
All features of an interlocking garbage chute are included.
The system is capable of segregating dry and wet garbage separately.
Each door is equipped with controllers to select DRY or WET garbage.
The garbage is diverted to the respective trolley based on the selection.
The flap door at the bottom adjusts to direct the garbage to the correct trolley.
PLEASE NOTE THAT WE ARE OFFERING THESE
GARBAGE CHUTES SYSTEMS IN LINE WITH NFPA 82 / BS 1703 WHICH ASKS FOR
90 min fire rated UL Certified 10B chute system type doors
